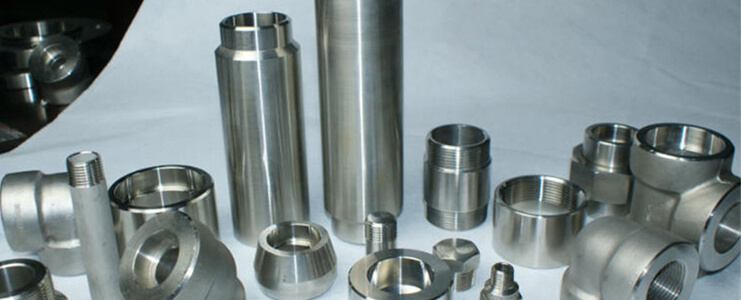

Mahaveer Steel is a rising producer, supplier, and exporters of Inconel 600/601/625 connection weld fittings. Inconel 600/601/625 fittings are arranged and made by open and overall quality standards.
They moreover follow all rules and offer responsive organizations. Inconel 600/601/625 connection weld fittings have exceptional resistance against oxidizing and separated utilization conditions, including splendid hindrance against strong acids like nitric and sulphuric acids. Inconel 800, 800H, and 800HT Socket weld fittings are made out of chromium-molybdenum-nickel blends.
Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
All Socketweld Fittings is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Socketweld Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | 550 MPa, 80000 psi | 205 MPa, 30000 psi | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
