Mahaveer Steel is one of the fundamental creators, supplier, exporter, and trader of Flanges. We are considering all of the necessities and solicitations of various dares to make sensible things and parts for them. In Flanges, we are creating Flanges in all metals and mixtures. This prepares us to fulfill the necessities of each mechanical region. We produce Flanges in the two grades of Titanium that is Titanium Grade 2 and Grade 5. These the two Grades has its striking features and benefits which make them fitting for unequivocal applications.

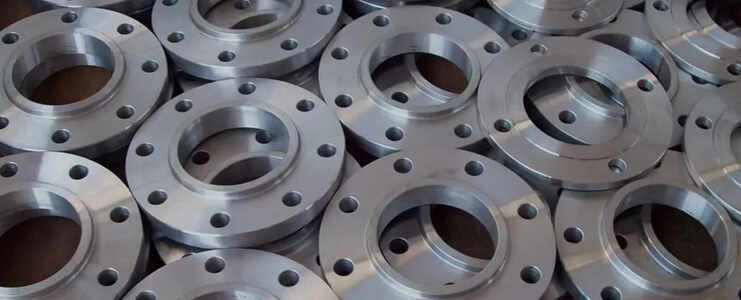

Titanium Grade 2 Flanges are maybe the most mentioned sorts of Flanges. These Flanges are available in various sizes, rules, subtleties, tasks, and estimations to consider necessities of all emerging present day regions. By giving an emotional extent of present day things, we set benchmarks around here. We are using high-grade Titanium material for amassing reason. We test material preceding using it for the production of Flanges. Quality testing is a basic stage in our cycle.
We have a gathering of entirely proficient and skilled specialists who are attempting association straightforwardly from the assurance of material till the last dispatch. Considering unsurprising quality, advancement, and data, we are completing each solicitation and making our client satisfied. We mean to pass on Flanges inside the picked time at reasonable rates and with each basic record. We use pattern setting development and present day instruments to make transcendent nature of Flanges.
Specification : ASTM B381 / ASME SB381
Dimension Standard : ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44
Standard : STM / ASME SB 381 / 160 / 472.
Size : : ½” NB to 12” NB
Class / Pressure : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS , ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc
STANDARD | UNS | DIN |
Titanium Gr 2 | R50400 | 3.7035 |
Titanium Gr 5 | N56400 | 3.7165 |
All Flanges is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
---|---|---|---|---|---|---|
AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
Grade | C | N | O | H | Ti | Fe | Ti | Fe | O | Al | V |
Ti Gr.2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | Bal | 0.30 max | - | - | - | - | - |
Ti Gr.5 | - | - | - | - | - | - | 90 min | 0.25 max | 0.2 max | 6 min | 4 min |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
