Mahaveer Steels is quite possibly the most prepared steel organizations in India. We are the producer and suppliers of steel things
Mahaveer Steels are giving steel things all through the drawn out at this point. We maker a wide scope of steel grades, plates, sheets, spines and unique nature of buttweld fittings, etc We guarantee that first class rough material is being used in the making of these things. These things go through a couple of tests before getting dispatched. We use the latest equipment and methods of reasoning in the formation of these things. We similarly give the entire day customer help to all of our clients so the inquiries and requests will be quickly settled.

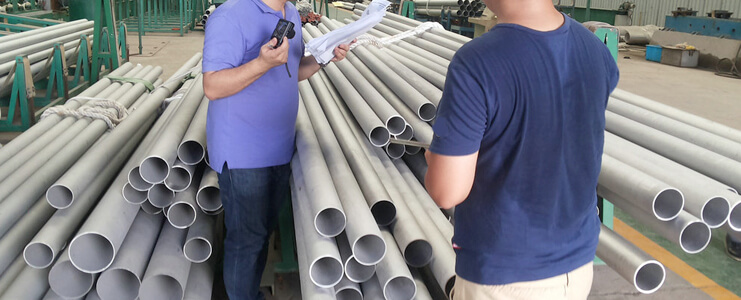

Stainless steel 310/310S Pipes Tubes is impenetrable to oxidation, utilization, stress breaking, and other damaging reactions. The yield and versatility are particularly high; appropriately, it is weldable.
Pipe Specification : ASTM A312, A358 / ASME SA312, SA358
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Thickness Range : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Outside Finish : 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | - | X15CrNi25-20 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | - | X8CrNi25-21 |
All Pipes is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Pipe/Tube | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Stainless Steel 310, 310S Pipes | 1/8″ |
 |
|
|
|
|
| Stainless Steel 310, 310S Pipes | 1/4″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 3/8″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 1/2″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 3/4″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 1″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 1 1/4″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 1 1/2″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 2″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 2 1/2″ |
|
|
|
|
|
| Stainless Steel 310, 310S Seamless Pipes | 3″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 4″ |
|
|
|
|
|
| Stainless Steel 310, 310S Seamless Pipes | 5″ |
|
|
|
|
|
| Stainless Steel 310, 310S Pipes | 6″ |
|
|
|
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 - 26.00 | 0.10 max | 19.00 - 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 - 26.00 | 0.75 max | 19.00 - 21.00 | 53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
