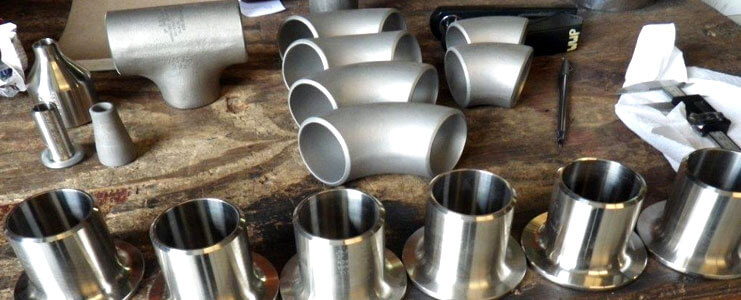

Mahaveer Steel is the producer and supplier of a wide extent of Inconel 800, 800H, and 800HT Buttweld fittings. We are avowed and trusted in creators throughout late numerous years. We offer an expansive extent of Inconel fitting to import and passage all throughout the planet.
Inconel 800, 800H, and 800HT Buttweld fittings are made out of chromium-molybdenum-nickel mixtures and give incredible deterrent against parted, pitting, and oxidation utilization in the environment. Inconel 800H, furthermore broadly known as UNS N08810, is an iron-nickel-chromium blend used for creep burst strength. Inconel 800HT fittings are all around used for reformer tubing in treatment office organizations. Inconel 800-grade approach utilization block contains nickel-chromium compound that offers incredible inflexibility and yielding strength and resistance against a carburization environment. We offer a wide scope of sizes, shapes, and estimations depending on the customer's segments.
Our gathering used uncommon quality unrefined material to ensure the best, getting versatility, unpleasant turn of events, and ability to wear profound temperatures. Inconel fittings are prepared for being passed on in high temperature and squeezing factor conditions.
Inconel 800, 800H, and 800HT Buttweld fittings have a wide extent of employments across various endeavors and are toward the ocean oil exhausting, gas organizations, petrochemical adventures, condensers, drug stuff, paper, and squash organizations, power age, and various others. For extra information, reach out to us.
Specification : ASTM B366 / ASME SB366
Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25 : Buttwelding Ends
ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range : ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size : 1/2" - 10"
Welded Butt Weld Fittings Size : 1/2" - 48"
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / Welded / Fabricated
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | - | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Incoloy 800 | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .1 max | 1.5 max | .015 max | 1.0 max |
| Incoloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
| Incoloy 800HT | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .25-.60 | .85-1.20 | .06-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi - 75,000 , MPa -520 | Psi - 30,000 , MPa - 205 | 30 - 35 % |
