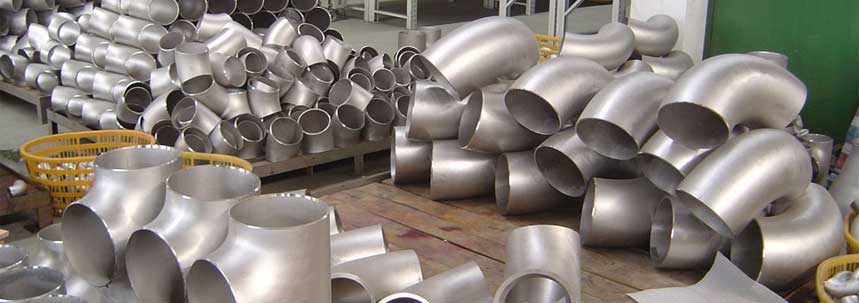

Mahaveer Steel is a dependable and notable exporter of first class present day equipment in different grades and mixtures. We are the best supplier of line fitting in this forceful market and vendor of brilliant treated steel 17-4 ph pipe fittings in different shapes and sizes.
The line fitting is available in different standards, judgments, thicknesses, estimations, breadths, lengths, structures, and finishes, etc We supply pipe fitting according to our customer's advantage. The line fitting is extensively used to interface the line system and used to change the movement of the line a substitute way. The line fitting is available in various types like butt weld, connection weld, reducer, elbow, coupling, hung, flanged, tee type, cross-type, wind type, and some more.
The mix tempered steel 17-4 ph is containing a high proportion of chromium, nickel and copper composite with a little extension of carbon, molybdenum silicon, and titanium. The extension of engineered creation gives the resolute quality, straightforward production, easy to shape, weldability, etc The mix offer extraordinary mechanical property and incredible utilization check up top 600 degrees f temperature.
The line fitting gives remarkable disintegration resistance and security from oxidation in diminishing media. The treated steel 17-4 ph pipe fitting has grand insurance from chloride disintegration and stress breaking utilization at the high temperature. The extension of nickel and chromium mixture the line fitting invigorates high and mechanical property too. It gives insurance from pitting, separated, crumbling, and other regular rust and security from acids in compound conditions. The line fitting has various features like high work execution, strength, exact surface estimations, and some more. It has incredible flexibility, malleable, yield, and mechanical strength also.
Specification : ASTM A403 / ASME SA403
Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25 : Buttwelding Ends
ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range : ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size : 1/2" - 10"
Welded Butt Weld Fittings Size : 1/2" - 48"
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / Welded / Fabricated
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 17-4 PH | 1.4542 | S17400 | SUS630 | ZZ6CNU17-O4 | – | – | X5CrNiCuNb16.4 |
All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
| Grade | C | Cu | Mn | Ni | Nb-Cb | Cr | Nb-Ta | P | Si | S | Fe | |
| 17-4 PH | min. | – | 3.0 | – | 3.0 | 0.15 | 15 | 0.15 | – | – | – | – |
| max. | 0.070 | 5.0 | 1.0 | 5.0 | 0.45 | 17.5 | 0.45 | 0.040 | 1.0 | 0.030 | 73 | |
| Grade | Properties | Metric | Imperial |
| 17-4 PH | Density | 7.75 g/cm3 | 0.280 lb/in³ |
| Shear modulus | 77.4 GPa | 11200 ksi | |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi | |
