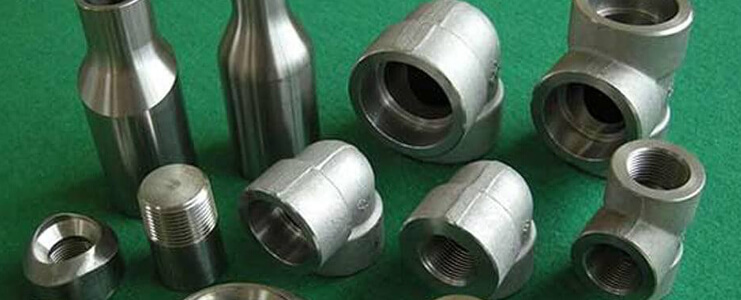

Mahaveer Steel is related with offering gigantic heaps of Nickel 200 and 201 Socket weld fittings. We are a lot of trusted and insisted suppliers locally and all throughout the planet. We pass our first class pipe fittings to various endeavors with wonderful assertion and support.
These fittings are used to portray, branch, or control the width of a line. These line fittings are used to control and lessen the line size and change the direction as well. Nickel connection weld fittings are used in designed fiber creation, where sodium oxide is used, and various organizations. our customers by giving the best quality fittings at a reasonable expense.
Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | GOST | BS |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | НП-2 | NA 11 |
| Nickel 201 | N02201 | 2.4068 | - | LC-Ni 99 | NW 2201 | НП-2 | NA 12 |
All Socketweld Fittings is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Socketweld Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
