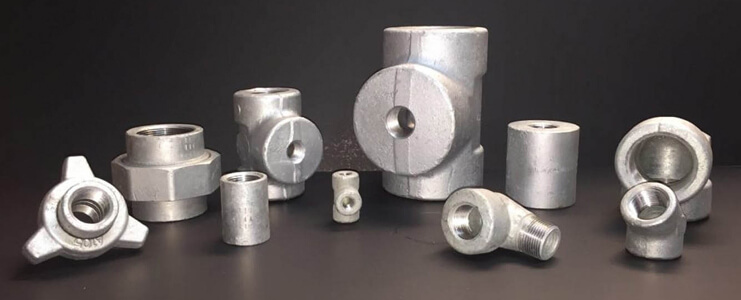

Mahaveer Steel is related with offering an enormous extent of Titanium produced connection weld fittings. We are known as the mainstream creator, supplier, and exporters of first class Titanium 1/2/5 and 7 Socketweld fittings locally and all throughout the planet. We are known as the wide extent of providers of different grades of connection weld fitting like Titanium Socketweld Socket Weld Pipe Fittings and Threaded Fittings.
We have a gathering of specialists and experts to analyze the entire creation and manage all things subject to public and overall quality rules. We moreover offer the changed shapes, sizes, and thickness according to the essential prerequisites at reasonable expenses. They are moreover protected against damaging and reducing conditions.
Specification : ASTM B381 / ASME SB381
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
STANDARD | UNS | DIN |
Titanium Gr 2 | R50400 | 3.7035 |
Titanium Gr 5 | N56400 | 3.7165 |
All Socketweld Fittings is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
ASME B16.11 | Socket Welding and Threaded Socketweld Fittings |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
MSS SP-95 | Swage(d) Nipples and Bull Plugs |
BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Grade | C | N | O | H | Ti | Fe | O | Al | V |
Ti Gr.2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | Bal | 0.30 max | - | - | - |
Ti Gr.5 | - | - | - | - | 90 min | 0.25 max | 0.2 max | 6 min | 4 min |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
