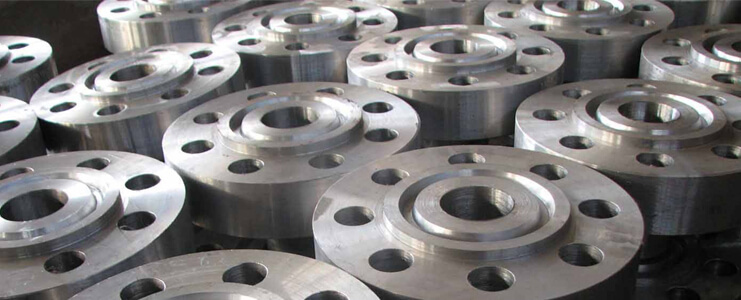

We, Mahaveer Steel, are amassing and giving a wide extent of Flanges in different grades. SS 321/321H Flanges are one of such Flanges open in our stock. Each kind of Flange has its unprecedented qualities and traits. By considering all necessities of mechanical and to add to their turn of events, we are making a wide scope of Flanges with various subtleties.
Compound 321 is Austenitic Titanium with Chromium-Nickel Stainless Steel. This grade astoundingly makes to give Intergranular disintegration obstacle. Composite 321 is sensible for applications where welding under high temperatures is required. This Alloy 321 has 0.08% of Carbon, 0.75% of Silicon, 0.10% of Nitrogen, and 2% Manganese. Blend 321H is a higher Carbon type of 321 composites which offers a collection of benefits. Mix 321H gives incredible low-temperature solidness, awesome assurance from oxidation, especially bendable, and outlines quickly. This heap of features and attributes are important to create Flanges. We, Mahaveer Steel, are conveying the best SS 321/321H Flanges in an arrangement of length, standard, estimations, divider thickness with extraordinary surface wrapping up.
Our SS 321/321H Flanges has properties like utilization deterrent limit, robustness, disintegrate free, security from oxidation, strength, and high weldability property. These helpful Flanges are totally sensible in various undertakings like the petrochemical business, pound, and paper industry, engineered industry, drug industry, aerodynamic exchange, food dealing with industry, oil and gas industry, and power plant industry.
Mahaveer Steel uses the latest advancement and present day devices to make quality SS 321/321H Flanges. The arranging and progression of SS 321/321H Flanges is done by open and worldwide rules. Our gathering of master experts is managing the production of Flanges to ensures flawlessness in surface fruitions and predictable dimensional exactness. By using refined advancement and present day instruments, we pass on expected that quality Flanges should our clients. With the use of advancement, we produce SS 321/321H Flanges in mass whole without compromising in quality.
Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
All Flanges is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
