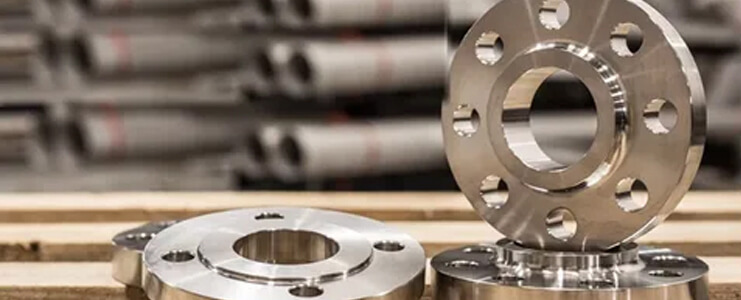

We, Mahaveer Steel, are maker, supplier, and exporter of a collection of Flanges. SS 347/347H Flanges are a champion among other selling and mentioned kind of Flanges. Mix 347 is a Columbium/Tantalum offset Austenitic Chromium-Nickel Stainless Steel which has amazing weldability features and properties than ordinary rules Austenitic Steels. This grade has marvelous disintegration resistance in the higher temperatures and along these lines sensible for temperature range 450-degree C to 900-degree C. This blend has properties like high mechanical strength and offers long assistance presence with dumbfounding flexibility. Mixture SS 347H is a higher variation of the composite 347, which contains 0.04 to 0.10% of Carbon. This additional Carbon updates creep block for the higher temperature. These Alloys are basically used for dangerous conditions and in high temperatures applications.
Mahaveer Steel intends to give all parts and things which are required in the directing system. Ribs are one the part which we are offering for Piping applications. With the pervasive quality and complete extents of SS 347/347H Flanges, we are offering a totally planning with response for our clients. We offered SS 347/347H Flanges with terrifically significant properties to make each diverting movement less complex. We are giving these high-grade Flanges in adventures, for instance, substantial organizations, compound cycle, medications, and some more.
We are giving and conveying these SS 347/347H Flanges in various conclusions like different standards, estimations, thicknesses, sizes, and classes. We are in like manner creating Flanges with extraordinarily created specifics to offer cautious solutions for our respect clients. We make SS 347/347H Flanges in imaginative collecting plant under the serious oversight capable master. We are following all portrayed public and worldwide amassing rules. By using the unparalleled idea of blend, we produce first class SS 347/347H Flanges.
Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | X6CrNiNb18-12 |
All Flanges is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 20.00 | 10xC – 1.10 | 9.00 - 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 8xC – 1.10 | 9.00 – 13.00 | 63.72 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
