Duplex Steel has two grades like UNS S32760 and UNS S32750. The two classes have favorable properties which are significant to make different things and fragments for Piping applications. Extremely Duplex Steel S32750 has a mixed microstructure of austenitic and ferritic grade which has higher chromium and molybdenum content. This grade offers really exceptional disintegration check quality which makes things sensible to work in conditions having certain levels of chlorides. S32760 is another grade of Super Duplex Steel has incredible utilization resistance limit. This grade has high strength than the 22% carbon Duplex Stainless Steel and Austenitic.

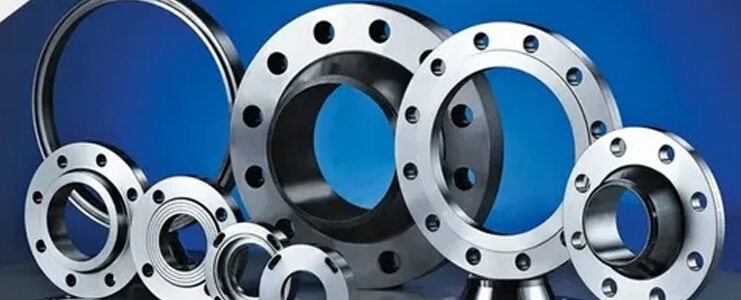

These Super Duplex Steel grades are sensible to make Flanges. We, Mahaveer Steel, are conveying, giving, and conveying Super Duplex 32750/32760 Flanges. Recalling grouped prerequisites adventures, we are producing such Flanges in different rules, sizes, class, and estimations. We are also giving Super Duplex 32750/32760 Flanges as indicated by the requirements given by clients.
As a customer focused creator of Flanges, we are giving Flanges in all metals and composites with different judgments. To satisfy customer's longings and to satisfy their necessities, our gathering is working with responsibilities and center interest. We have a surprising gathering of gifted, trained professionals, and fit specialists. They have huge contribution with the collecting region, which helps us with making uncommon quality Flanges. We are in like manner using state of the art advancement and mechanical assembly to make Super Duplex 32750/32760 Flanges. It helps with giving Flanges in mass entirety without compromising in quality.
Mahaveer Steel intends to fulfill the necessities of various ventures and prepare them to do puzzled Piping applications or jobs viably. In this way, we are offering Super Duplex 32750/32760 Flanges with qualities like high versatility, solid turn of events, sturdiness, life range, threatening to danger, and insurance from general utilization, pitting, and oxidation.
Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
STANDARD | WERKSTOFF NR. |
S32750/S32760 | 1.4462 |
All Flanges is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.
Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
---|---|---|---|---|---|---|
AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32750 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32760 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
S32750 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
S32760 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
